Component¶
Field |
Action |
|---|---|
Name |
Name of the component |
Color |
Color of the component in (R,G,B) |
Mass |
Mass of the component |
alpha |
Mass proportional damping coefficient, multiplies mass matrix |
beta |
Stiffness proportional damping coefficient, multiplies stiffness matrix |
Default system |
Select which system is used for the mechanical or thermal calculations |

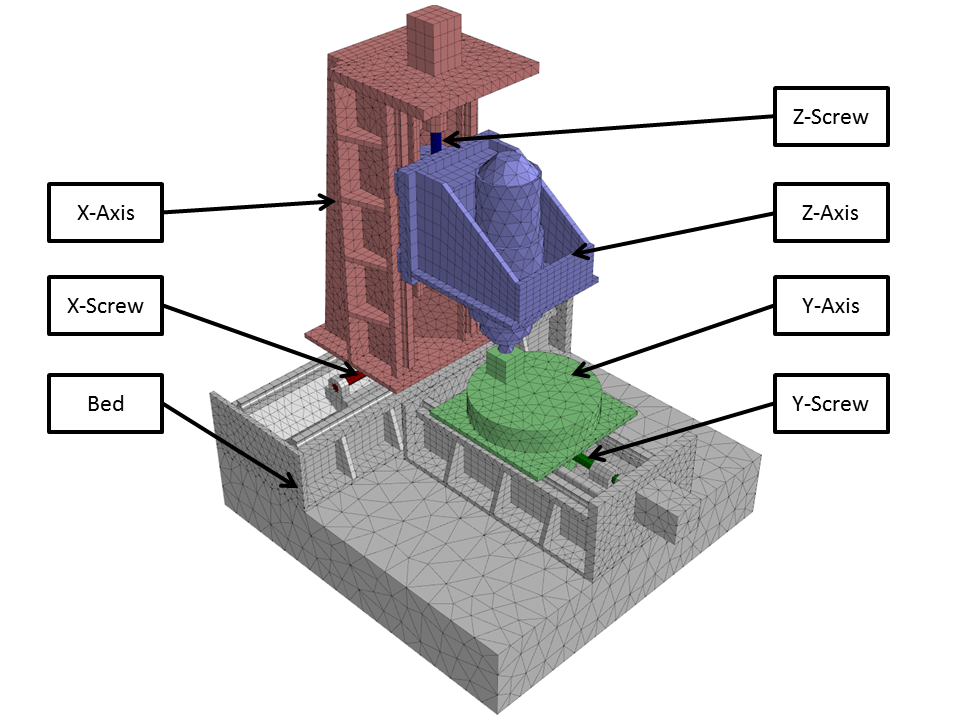

Color scheme¶
Part |
Motion |
Color |
(R,G,B) |
|---|---|---|---|
Bed |
No motion |
Gray |
(200,200,200) |
X-Axis |
X-direction |
Red |
(200,127,127) |
Y-Axis |
Y-direction |
Green |
(127,200,127) |
Z-Axis |
Z-direction |
Blue |
(127,127,200) |
A-Axis |
Turning around x-axis |
Orange |
(255,170,000) |
B-Axis |
Turning around y-axis |
Light green |
(170,255,000) |
C-Axis |
Turning around z-axis |
Light blue |
(000,170,255) |
X-Screw |
X Ballscrew |
Dark green |
(127,000,000) |
Y-Screw |
Y-Axis Ballscrew |
Dark green |
(000,127,000) |
Z-Screw |
Z-Axis Ballscrew |
Dark blue |
(000,000,127) |
