Ball screw drive

Ball screw drive link properties implement a ball screw drive. Only the linear elastic behaviour is modelled, non-linearities are neglected. The simplifications are:

• any kind of backlash is neglected

• local deformation of the nut is not modelled

Definition

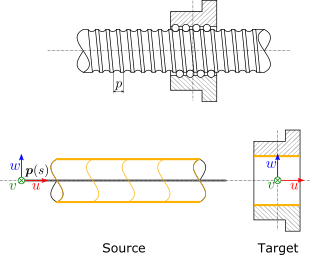

Source and target interfaces should be chosen as shown in following figure:

Source interface

Type	Moving interface (Fourier)
Topologies	Peripheral face of the screw
Location	Along the screw axis
u direction	Axial, along the screw axis
v direction	Radial
w direction	Radial

Target interface

Type	Stationary interface (6dof)
Topologies	Mounting face of the nut
Location	Center of the screw axis
u direction	Axial, along the screw axis
v direction	Radial
w direction	Radial

Recommended link settings

Use ground for source	unchecked
Location master	target
Orientation master	either source or target

Parameters

Parameter	Unit	Description
Screw pitch	m	Pitch of the ball screw
Axial stiffness	N/m	Axial stiffness of the nut-to-screw coupling
Radial stiffness	N/m	Radial stiffness of the nut-to-screw coupling
Tilting stiffness	Nm/rad	Tilting stiffness of the nut-to-screw coupling
Axial damping	Ns/m	Axial damping of the nut-to-screw coupling
Radial damping	Ns/m	Radial damping of the nut-to-screw coupling
Tilting damping	Nms/rad	Tilting damping of the nut-to-screw coupling
Rotational damping	Nms/rad	Rotational damping when rotating the screw relative to the nut
